FRC6785 | 0.9mm Front Driveshaft Shim - Defender, Discovery 1, Range Rover Classic
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page

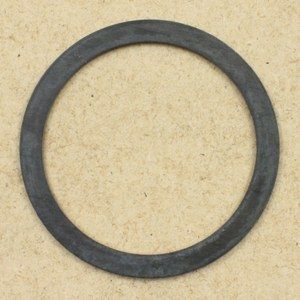

Land Rover Part Number: FRC6785 - 0.9mm Front Driveshaft Shim
FRC6785 is a 0.9mm front driveshaft shim. Fitted within the front driveshaft flange assembly, this shim sets the axial clearance between the driveshaft flange and its mating components to achieve the correct endfloat during assembly and adjustment.
Compatibility
- Discovery 1 (1989-1998) - From VIN FA393361 to VIN WA799999
- Defender (1987-2006) - Front hubs To VIN KA930455
- Defender (1987-2006) - Front hubs From VIN LA930456
- Range Rover Classic (1986-1991) - To VIN HA610293
- Range Rover Classic (1992-1994) - From VIN JA610294
Frequently Asked Questions
FRC6785 is used to set the axial clearance (endfloat) within the front driveshaft flange assembly. It is fitted during assembly or when adjusting the driveshaft to obtain the correct spacing between the flange and its mating components; ensure the shim is correctly seated and mating surfaces are clean when installing.
| Model | Variant |
|---|---|
| Land Rover Discovery 1 (1989-1998) | Drive shafts - From VIN FA393361 to VIN WA799999 |
| Land Rover Defender (1987-2006) | Front hubs - To VIN KA930455 |
| Land Rover Defender (1987-2006) | Front hubs - From VIN LA930456 |
| Land Rover Range Rover Classic (1986-1991) | Drive shafts / hubs and driveshafts (4 wheel anti-lock braking system) - To VIN HA610293 |
| Land Rover Range Rover Classic (1992-1994) | Drive shafts / hubs and driveshafts (4 wheel anti-lock braking system and less anti-lock options) - From VIN JA610294 |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Inspect the shim whenever the front driveshaft or hubs are serviced and replace it if it is bent, corroded or otherwise damaged; shims are normally changed when the flange is disassembled to reset axial clearance.
- C8 products are usually supplied by Britpart.
All products and accessories available on LRDirect.com come with a 2-year warranty.
