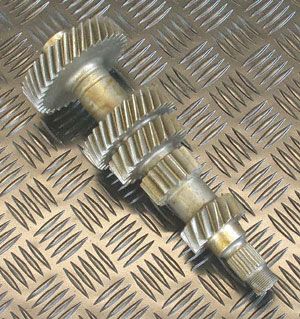

Land Rover Part Number: FRC9761 - Layshaft LT77 5-Speed Suffix F
FRC9761 is a layshaft for the LT77 5-speed manual gearbox, suffix F. Fitted to LT77 gearboxes used in Defender models, the layshaft sits between the input shaft and the gear cluster, carrying the intermediate gears and transmitting torque through the selected gearset to the output assembly. Correct specification to the LT77 suffix F geometry is important for gear alignment and smooth meshing. Installation requires correct bearing and spacer placement inside the gearbox casing to maintain end float and radial clearance; these installation details form part of the gearbox rebuild procedure and vary with build suffix and service condition.
Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Defender (1987-2006) - LT77 5-Speed manual transmission, from suffix F
Frequently Asked Questions
The FRC9761 layshaft is an internal LT77 transmission component that carries the intermediate gears and transfers torque from the input shaft through the selected gearset to the output assembly. It is matched to LT77 gear geometry from suffix F onwards. During assembly, correct bearing and spacer placement must be observed to maintain end float and radial clearance; replace the layshaft if gear teeth or bearing surfaces show wear or damage.
| Model | Variant |
|---|---|
| Land Rover Defender (1987-2006) | LT77 5-Speed manual transmission - From suffix F (L315) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Inspect the layshaft during any gearbox overhaul or if there are symptoms such as unusual noise or poor gear selection; replace it if gear teeth, bearing surfaces or journals show wear or damage. There is no standard service interval for replacement-replacement is typically condition-based during rebuilds.
- L8 products are genuine Land Rover parts.
All products and accessories available on LRDirect.com come with a 2-year warranty.
