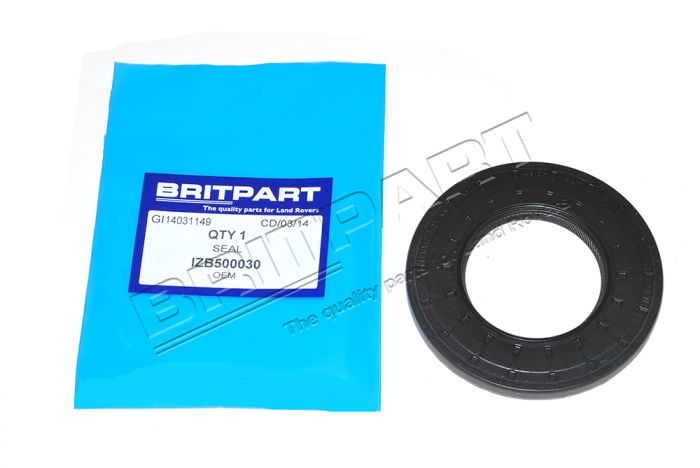

Land Rover Part Number: IZB500030 - Transfer Box Input Shaft Oil Seal
IZB500030 is a transfer box input shaft oil seal. Fitted to transfer box input shafts on vehicles equipped with the ZF Steptronic automatic gearbox, this seal prevents lubricant loss from the transfer box input area.
Compatibility
- Discovery 3 (2005-2009) - L319 - Transfer Drive Case (ZF 6HP26 Steptronic, ZF S6-53)
- Discovery 4 (2010-2016) - L319 - Transfer Drive Components (ZF 6HP28, ZF 6HP26 Steptronic, ZF S6-53, ZF 8HP70)
- Range Rover (2002-2009) - L322 - Transfer Drive Case (ZF 6HP26 Steptronic)
- Range Rover (2010-2012) - L322 - Transfer Drive Components (ZF 6HP28, ZF 6HP26 Steptronic, ZF 8HP70)
- Range Rover (2013-2022) - L405 - Transfer Drive Components (With 2 Spd Trans Case With Ctl Trac)
- Range Rover Sport (2010-2013) - L320 - Transfer Drive Components (ZF 6HP28, ZF 6HP26 Steptronic, ZF 8HP70)
- Range Rover Sport (2014-2022) - L494 - Transfer Drive Components (ZF 8HP45, ZF 8HP70 4WD, ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl Trac)
Frequently Asked Questions
IZB500030 is an input shaft oil seal for the transfer box. It is fitted to transfer box input shafts on models using the ZF Steptronic automatic gearbox to maintain correct lubricant retention at the input shaft area.
| Model | Variant |
|---|---|
| Land Rover Discovery 3 (2005-2009) - L319 | Transfer Drive Case (ZF 6HP26 Steptronic, ZF S6-53) |
| Land Rover Discovery 4 (2010-2016) - L319 | Transfer Drive Components (ZF 6HP28, ZF 6HP26 Steptronic, ZF S6-53, ZF 8HP70; includes variants with 2 Spd Trans Case With Ctl Trac) |
| Land Rover Range Rover (2002-2009) - L322 | Transfer Drive Case (ZF 6HP26 Steptronic) |
| Land Rover Range Rover (2010-2012) - L322 | Transfer Drive Components (ZF 6HP28, ZF 6HP26 Steptronic, ZF 8HP70) |
| Land Rover Range Rover (2013-2022) - L405 | Transfer Drive Components (With 2 Spd Trans Case With Ctl Trac) |
| Land Rover Range Rover Sport (2010-2013) - L320 | Transfer Drive Components (ZF 6HP28, ZF 6HP26 Steptronic, ZF 8HP70) |
| Land Rover Range Rover Sport (2014-2022) - L494 | Transfer Drive Components (ZF 8HP45, ZF 8HP70 4WD, ZF 8HP70 HEV 4WD; With 2 Spd Trans Case With Ctl Trac) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Inspect the seal whenever the transfer box is serviced and replace it if there are signs of leakage or visible damage; consult a technician or the vehicle handbook if unsure.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
- Z8 products are normally supplied by Allmakes.
All products and accessories available on LRDirect.com come with a 2-year warranty.
