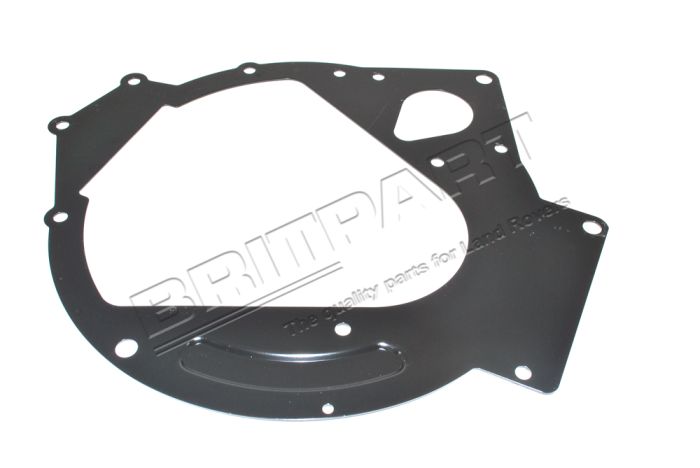

Land Rover Part Number: KSP101410 - Engine to gearbox shim plate - Td5
KSP101410 is an engine-to-gearbox shim plate. Fitted between the Td5 engine and the gearbox, it sets the correct axial spacing and alignment at the flywheel/torque converter interface. The shim establishes the precise gap required for correct clutch engagement or torque converter alignment and helps prevent premature wear of the flywheel, pilot bearings and transmission input components. Installed at the bellhousing mating face, the plate compensates for manufacturing tolerances and any required adjustments when replacing the gearbox or flywheel assembly; it must match the specified thickness for the vehicle and transmission to maintain correct driveline geometry. Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Defender (1987-2006) - Td5 (L315)
- Discovery 2 (1998-2004) - Td5 (L318)
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Frequently Asked Questions
KSP101410 provides the precise axial spacer between the Td5 engine and gearbox at the bellhousing mating face. By setting the correct gap at the flywheel/torque converter interface it ensures correct clutch engagement or torque converter alignment and helps prevent premature wear of the flywheel, pilot bearings and transmission input components. The plate compensates for manufacturing tolerances when replacing the gearbox or flywheel assembly and must match the required thickness for the vehicle and transmission.
| Model | Variant |
|---|---|
| Land Rover Defender (1987-2006) | Flywheel - Manual (2.5L 5 Cyl L/R Turbo Diesel, Manual Transmission) |
| Land Rover Discovery 2 (1998-2004) | Flywheel (2.5L 5 Cyl Turbo Diesel, Automatic Transmission) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
All products and accessories available on LRDirect.com come with a 2-year warranty.
