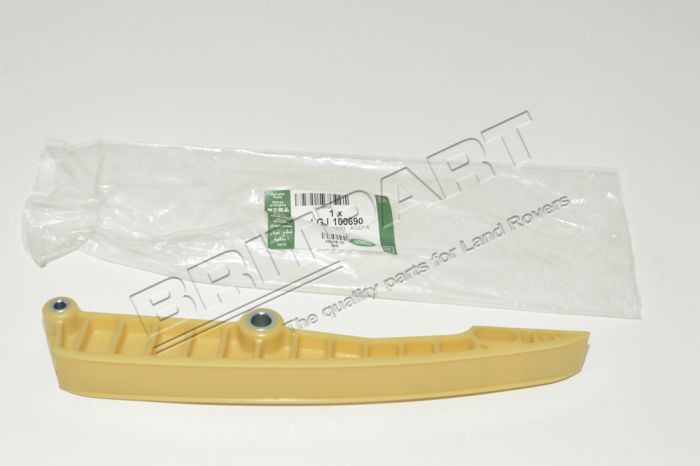

Land Rover Part Number: LGJ100690 - Timing Chain Guide Rail - Td5
LGJ100690 is a Timing Chain Guide Rail for Td5 engines. This guide rail locates and supports the timing chain within the Td5 timing system, providing a low-friction bearing surface and setting the correct chain path under the action of the chain tensioner. Fitted to the Td5 2.5L 5-cylinder turbo diesel timing assembly, the rail works with the sprockets and hydraulic/mechanical tensioner to maintain valve timing; wear, cracking or contamination can alter chain routing, increase slack and cause audible chain noise and accelerated wear of the chain and tensioner. Replace the guide rail during a timing system overhaul or when visible damage or significant wear is present to restore correct chain alignment and prevent secondary component damage.
Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Defender (1987-2006) - Td5
- Discovery 2 - Td5
Frequently Asked Questions
The LGJ100690 guide rail provides a low-friction bearing surface for the timing chain and establishes the correct chain path under the tensioner. It is used on Td5 2.5L 5-cylinder turbo diesel timing assemblies and helps maintain valve timing by working with sprockets and the hydraulic/mechanical tensioner. Wear or damage to the rail increases chain slack, can produce audible chain noise and accelerates wear of the chain and tensioner.
| Model | Variant |
|---|---|
| Land Rover Defender (1987-2006) | 2.5L 5-cylinder turbo diesel (Td5) |
| Land Rover Discovery 2 | 2.5L 5-cylinder turbo diesel (Td5) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Replace the LGJ100690 guide rail during a full timing system overhaul or if visible cracking, wear or severe contamination is present, to prevent incorrect chain routing and secondary component damage. If audible chain noise or increased slack is noticed, inspect the rail and associated timing components promptly.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
