LR004104 | M10 x 25mm Flanged Hex Bolt - TDV6, 3.0D | Discovery, Range Rover
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page

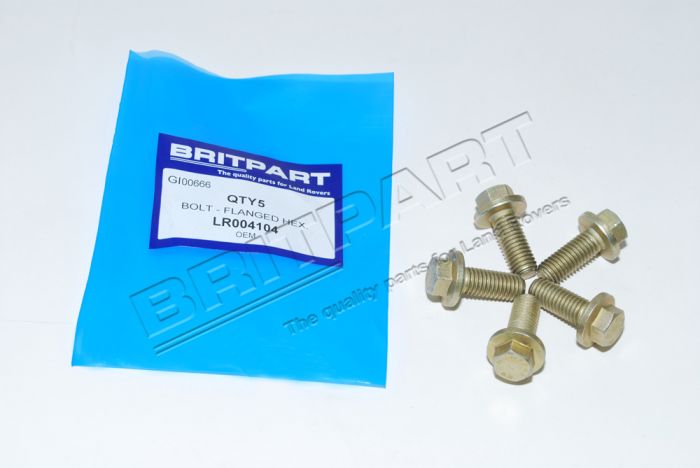

Land Rover Part Number: LR004104 - M10 x 25mm Flanged Hex Bolt
LR004104 is an M10 x 25mm flanged hex bolt. Fitted in turbocharger and timing gear assemblies to secure components, the integral flange provides a larger bearing surface for even load distribution. Inspect the bolt, threads and seating surface for damage or contamination before refitting to ensure correct clamping.
Compatibility
- Discovery 3 (2005-2009) - 2.7 TDV6 - Timing Gear (Lower) - To VIN 9A999999
- Discovery 4 (2010-2016) - 2.7 TDV6 - Timing Gear (Lower) - From VIN AA000001
- Discovery 4 (2010-2016) - 3.0 V6 Diesel - Timing Gear (Lower) - From VIN AA000001
- Range Rover (2010-2012) - 4.4L DOHC DITC V8 Diesel - Power Steering Pump Mounting - From VIN BA000001
- Range Rover (2010-2012) - 4.4L DOHC DITC V8 Diesel - Turbocharger (LH Side - Secondary) - From VIN BA000001
- Range Rover (2013-2022) - 4.4L DOHC DITC V8 Diesel - Turbocharger (LH Side - Secondary)
- Range Rover Sport (2010-2013) - 3.0 V6 Diesel - Timing Gear (Lower) - From VIN AA000001
- Range Rover Sport (2014-2022) - 4.4L DOHC DITC V8 Diesel - Turbocharger (LH Side - Secondary)
Frequently Asked Questions
LR004104 is an M10 x 25mm flanged hex bolt used to secure components within turbocharger and timing gear assemblies. The flange gives a larger seating area to help distribute clamping force and resist loosening under vibration. Check threads and seating surfaces for damage or contamination before installation.
| Model | Variant |
|---|---|
| Land Rover Discovery 3 (2005-2009) | 2.7 TDV6 - Timing Gear (Lower) - To VIN 9A999999 |
| Land Rover Discovery 4 (2010-2016) | 2.7 TDV6 - Timing Gear (Lower) - From VIN AA000001 |
| Land Rover Discovery 4 (2010-2016) | 3.0 V6 Diesel - Timing Gear (Lower) - From VIN AA000001 |
| Land Rover Range Rover (2010-2012) | 4.4L DOHC DITC V8 Diesel - Power Steering Pump Mounting - From VIN BA000001 |
| Land Rover Range Rover (2010-2012) | 4.4L DOHC DITC V8 Diesel - Turbocharger (LH Side - Secondary) - From VIN BA000001 |
| Land Rover Range Rover (2013-2022) | 4.4L DOHC DITC V8 Diesel - Turbocharger (LH Side - Secondary) |
| Land Rover Range Rover Sport (2010-2013) | 3.0 V6 Diesel - Timing Gear (Lower) - From VIN AA000001 |
| Land Rover Range Rover Sport (2014-2022) | 4.4L DOHC DITC V8 Diesel - Turbocharger (LH Side - Secondary) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Inspect LR004104 during any service that accesses the timing gear or turbocharger and replace it if the head or threads are damaged, corroded, or show signs of wear or stretching. If there is any doubt, follow manufacturer service guidance or consult a qualified technician.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
All products and accessories available on LRDirect.com come with a 2-year warranty.
