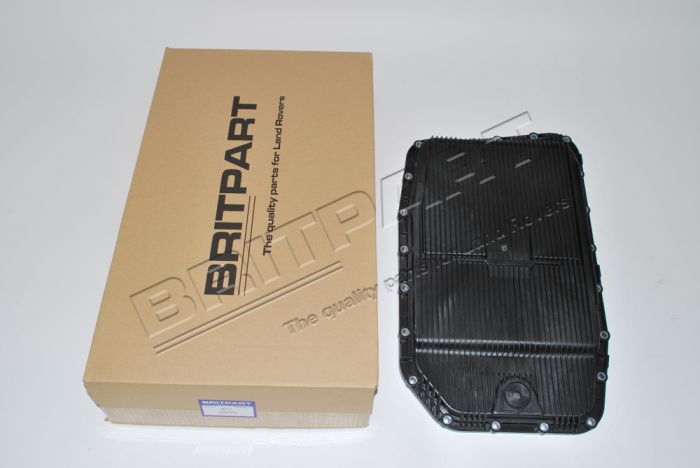

Land Rover Part Number: LR007474 - Transmission Oil Sump - ZF 6 Speed
LR007474 is a transmission oil sump (pan assembly) for ZF 6-speed automatic gearboxes, supplied complete with the sump oil filter. Fitted to vehicles using the ZF 6-speed automatic transmission, the sump collects and contains automatic transmission fluid at the base of the gearbox and integrates the transmission oil filter into the pan assembly. Located on the underside of the transmission, the pan provides a sealed reservoir for fluid circulation, accommodates the filter element that removes wear particles and contaminants from the fluid flow, and incorporates the drain area, sealing flange and gasket interface to the transmission case. This assembly is part of the transmission external components and should be replaced if damaged, corroded or when the filter element is being renewed during service.
Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Discovery 3 (2005-2009) - 6 Speed Auto ZF 6HP26 - From VIN 7A448442
- Discovery 4 (2010-2016) - 3.0 V6 Diesel, 5.0L AJ133 V8 - From VIN AA000001
- Range Rover (2002-2009) - 6 Speed Auto ZF 6HP26 - From VIN 7A264612
- Range Rover (2010-2012) - 3.0 V6 Diesel, 5.0L AJ133 V8 - From VIN AA000001
- Range Rover Sport (2005-2009) - 6 Speed Auto ZF 6HP26 - From VIN 7A129641
- Range Rover Sport (2010-2013) - 3.0 V6 Diesel, 5.0L AJ133 V8 - From VIN AA000001
Frequently Asked Questions
LR007474 is the transmission oil sump (pan assembly) for ZF 6-speed automatic gearboxes. It stores the transmission fluid at the base of the gearbox and houses the transmission oil filter so the fluid is filtered of wear particles and contaminants. The pan also provides the drain area, sealing flange and gasket interface to the transmission case and is supplied complete with the sump oil filter.
| Model | Variant |
|---|---|
| Land Rover Discovery 3 | 2005-2009 - 6 Speed Auto ZF 6HP26 - From VIN 7A448442 |
| Land Rover Discovery 4 | 2010-2016 - 3.0 V6 Diesel, 5.0L AJ133 V8 - From VIN AA000001 |
| Land Rover Range Rover | 2002-2009 - 6 Speed Auto ZF 6HP26 - From VIN 7A264612 |
| Land Rover Range Rover | 2010-2012 - 3.0 V6 Diesel, 5.0L AJ133 V8 - From VIN AA000001 |
| Land Rover Range Rover Sport | 2005-2009 - 6 Speed Auto ZF 6HP26 - From VIN 7A129641 |
| Land Rover Range Rover Sport | 2010-2013 - 3.0 V6 Diesel, 5.0L AJ133 V8 - From VIN AA000001 |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Replace the sump assembly if it is damaged, corroded or leaking, and when the transmission oil filter element is being renewed during service. Inspect the pan during transmission servicing and consult the vehicle service schedule or a qualified technician if unsure.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
- Z8 products are normally supplied by Allmakes.
All products and accessories available on LRDirect.com come with a 2-year warranty.
