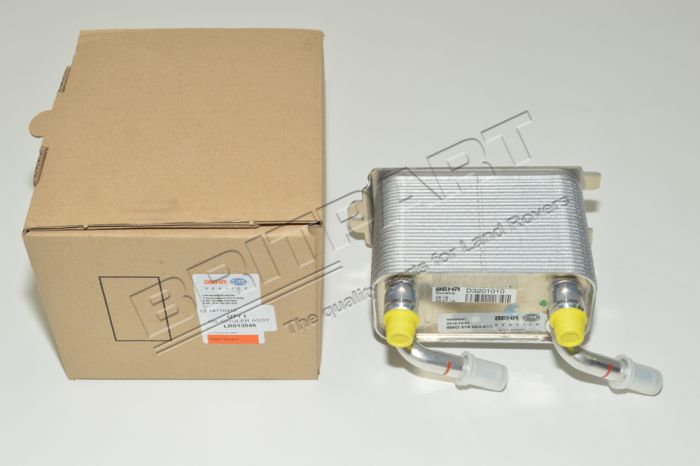

Land Rover Part Number: LR013046 - Oil Cooler - Automatic Transmission - 5.0 AJ-V8
LR013046 is an oil cooler for the automatic transmission fitted to Range Rover L322 (2010-2012) models with the 5.0 AJ-V8 engine (from VIN AA000001). The assembly forms part of the transmission cooling circuit on ZF 6HP28 6-speed automatic transmissions and circulates transmission fluid through a heat-exchanging core to control operating temperatures during normal driving and under load.
Correct operating temperature reduces the risk of fluid breakdown and supports consistent transmission behaviour, particularly during repeated gear changes or towing. The unit is supplied as a complete assembly and requires connection to the transmission oil lines and mounting within the engine-bay cooling layout. Replacement of this assembly is appropriate when leaks, internal blockage, or external damage are present, or when transmission overheating or fluid contamination has been diagnosed. Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Range Rover (2010-2012) - 5.0 AJ-V8 (From VIN AA000001)
Frequently Asked Questions
The LR013046 oil cooler circulates transmission fluid through a heat-exchanging assembly to control operating temperatures on ZF 6HP28 6-speed automatic transmissions. Maintaining correct fluid temperature helps prevent fluid breakdown and supports consistent transmission behaviour under repeated gear changes or when towing. The cooler is supplied as a complete assembly and fits into the transmission cooling circuit via dedicated oil lines.
| Model | Variant |
|---|---|
| Land Rover Range Rover (L322) (2010-2012) | 5.0L OHC SGDI V8 (AJ133) - 6 Speed Auto Transmission ZF 6HP28 (From VIN AA000001) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Replace the LR013046 oil cooler if there are signs of leaks, internal blockage or external damage, or if transmission overheating or fluid contamination has been diagnosed. Inspect the cooler and its connections during transmission service when issues are suspected.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
All products and accessories available on LRDirect.com come with a 2-year warranty.
