Land Rover Part Number: LR013234 - Lower Oil Return Gasket - 3.0D

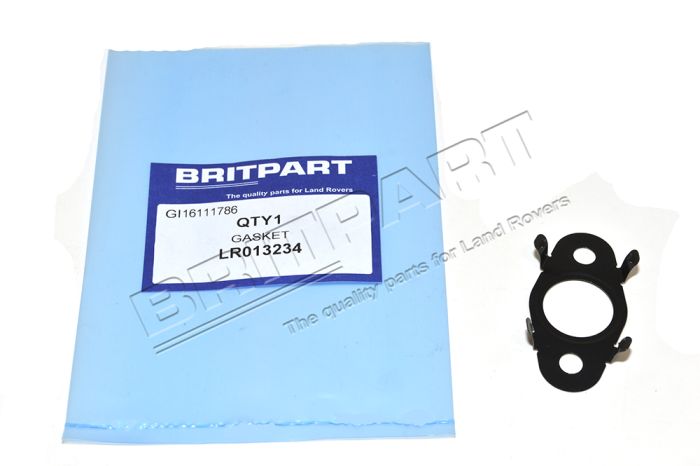

LR013234 is a lower oil return gasket for 3.0D engines. Fitted to the lower turbocharger oil return pipe, the gasket provides a leak-tight seal on 3.0 TDV6 and 3.0 SDV6 turbocharged diesel engines to ensure correct oil return to the sump.
Compatibility
- Discovery 4 (2010-2016) - 3.0 TDV6 / 3.0 SDV6 - From VIN AA000001
- Discovery 5 (2017-) - 3.0 TDV6 / 3.0 SDV6
- Range Rover (2013-2022) - 3.0 TDV6 / 3.0 SDV6
- Range Rover Sport (2010-2013) - 3.0 TDV6 / 3.0 SDV6
- Range Rover Sport (2014-2022) - 3.0 TDV6 / 3.0 SDV6
Frequently Asked Questions
LR013234 seals the lower turbocharger oil return pipe to prevent oil leaks where the turbocharger drains back to the sump on 3.0 TDV6 / 3.0 SDV6 diesel engines. It should be checked for signs of oil seepage or distortion whenever the turbocharger or oil-return pipe is removed and replaced if damaged.
| Model | Variant |
|---|---|
| Land Rover Discovery 4 (2010-2016) | Turbocharger - 3.0 V6 Diesel (RH Side - Secondary). From VIN AA000001 |
| Land Rover Discovery 4 (2010-2016) | Turbocharger - 3.0 V6 Diesel Electric / 3.0L 24V DOHC V6 TC Diesel / 3.0L 24V V6 Turbo Diesel Std Flow (LH Side - Primary). From VIN AA000001 |
| Land Rover Discovery 4 (2010-2016) | Turbocharger - 3.0 V6 D Gen2 Twin Turbo (LH Side - Primary, Solihull Plant Build). From VIN FA000001 |
| Land Rover Discovery 5 (2017 >) | Turbocharger - 3.0 V6 D Gen2 Mono Turbo / 3.0 V6 D Low MT ROW (Solihull Plant Build). From VIN FA000001 |
| Land Rover Discovery 5 (2017 >) | Turbocharger - 3.0 V6 D Gen2 Twin Turbo (LH Side - Primary, Solihull Plant Build). From VIN FA000001 |
| Land Rover Discovery 5 (2017 >) | Turbocharger - 3.0 V6 D Gen2 Mono Turbo / 3.0 V6 D Low MT ROW (Nitra Plant Build). From VIN K2000001 |
| Land Rover Range Rover (2013-2022) | Turbocharger - 3.0 V6 Diesel Electric / 3.0L 24V DOHC V6 TC Diesel / 3.0L 24V V6 Turbo Diesel Std Flow (LH Side - Primary). From VIN AA000001 |
| Land Rover Range Rover (2013-2022) | Turbocharger - 3.0 V6 D Gen2 Twin Turbo (RH Side - Secondary) |
| Land Rover Range Rover (2013-2022) | Turbocharger - 3.0 V6 D Gen2 Mono Turbo / 3.0 V6 D Low MT ROW (Solihull Plant Build). From VIN FA000001 |
| Land Rover Range Rover (2013-2022) | Turbocharger - 3.0 V6 D Gen2 Twin Turbo (LH Side - Primary, Solihull Plant Build). From VIN FA000001 |
| Land Rover Range Rover Sport (2010-2013) | Turbocharger - 3.0 V6 Diesel (RH Side - Secondary). From VIN AA000001 |
| Land Rover Range Rover Sport (2010-2013) | Turbocharger - 3.0 V6 Diesel Electric / 3.0L 24V DOHC V6 TC Diesel / 3.0L 24V V6 Turbo Diesel Std Flow (LH Side - Primary). From VIN AA000001 |
| Land Rover Range Rover Sport (2014-2022) | Turbocharger - 3.0 V6 Diesel Electric / 3.0L 24V DOHC V6 TC Diesel / 3.0L 24V V6 Turbo Diesel Std Flow (LH Side - Primary). From VIN AA000001 |
| Land Rover Range Rover Sport (2014-2022) | Turbocharger - 3.0 V6 D Gen2 Mono Turbo / 3.0 V6 D Low MT ROW (Solihull Plant Build). From VIN FA000001 |
| Land Rover Range Rover Sport (2014-2022) | Turbocharger - 3.0 V6 D Gen2 Twin Turbo (LH Side - Primary, Solihull Plant Build). From VIN FA000001 |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Inspect the gasket whenever the turbocharger or oil-return pipe is removed and replace it if there are signs of oil leakage, hardening or distortion. It is good practice to check the gasket during turbocharger servicing and replace if its condition is uncertain.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
- Z8 products are normally supplied by Allmakes.
All products and accessories available on LRDirect.com come with a 2-year warranty.
