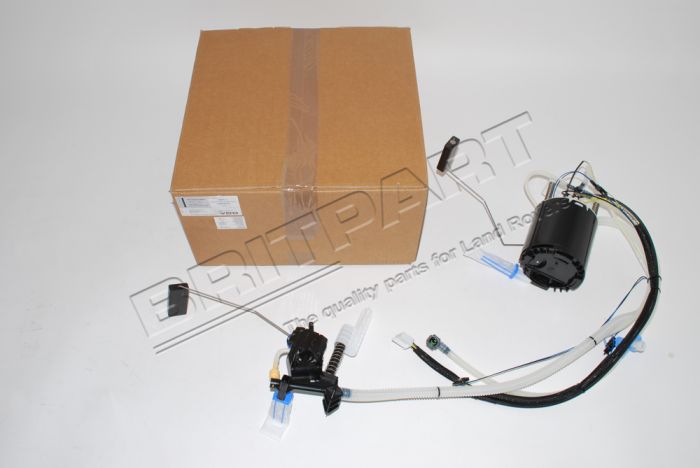

Land Rover Part Number: LR015177 - Fuel Pump and Sender Assembly
LR015177 is a fuel pump and sender assembly fitted inside the fuel tank of 4.2S AJ-V8 Range Rover L322 models. The assembly combines an electric in-tank pump that delivers pressurised fuel from the tank to the engine feed with an integral fuel level sender that measures remaining fuel for the instrument panel. The pump draws fuel to meet engine demand during acceleration and steady running while the sender uses a float and variable-resistance mechanism to report tank level.
Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Range Rover L322 (2009) - 4.2S AJ-V8 (From VIN 9A302735 to VIN 9A999999)
Frequently Asked Questions
The LR015177 is an in-tank electric fuel pump with an integral fuel level sender. The pump supplies pressurised fuel to the engine feed to meet demand, while the sender uses a float and variable-resistance mechanism to report the tank level to the instrument panel. Replacement is required when the pump motor fails, electrical connections degrade, or the sender gives incorrect readings.
| Model | Variant |
|---|---|
| Land Rover Range Rover L322 (2009) | 4.2S AJ-V8 (From VIN 9A302735 to VIN 9A999999) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Replace the LR015177 assembly when the pump motor fails, electrical connections degrade, or the sender reports incorrect fuel levels. It should also be considered for replacement if intermittent fuelling faults are experienced; have a qualified technician confirm diagnosis and fitment.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
- Z8 products are normally supplied by Allmakes.
All products and accessories available on LRDirect.com come with a 2-year warranty.
