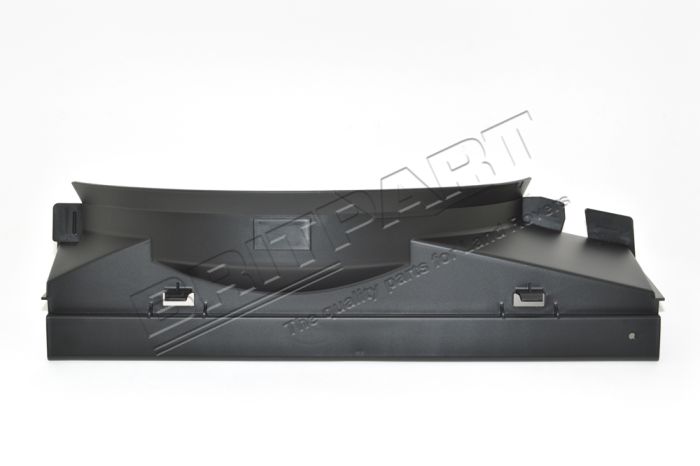

Land Rover Part Number: LR016206 - Radiator Fan Shroud
LR016206 is a Radiator Fan Shroud fitted to the engine cooling system on Discovery 4 models with the 5.0L OHC SGDI NA V8 Petrol AJ133 (From VIN AA000001). The shroud locates the electric cooling fan in relation to the radiator core and directs airflow through the radiator at low road speeds and when stationary to reduce recirculation and concentrate flow across the coolant passages for improved heat transfer. It also provides the mounting interface for the fan motor assembly and links to adjacent cooling ductwork. Inspect the shroud for cracks, distortion or broken mounting tabs if cooling performance, fan noise or clearances are under investigation.
Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Discovery 4 (2010-2016) - 5.0L OHC SGDI NA V8 Petrol (From VIN AA000001)
Frequently Asked Questions
The radiator fan shroud positions the electric cooling fan and channels airflow through the radiator core at low speeds and when stationary to improve heat transfer and reduce recirculation. It also provides mounting points for the fan motor assembly and connects to surrounding cooling ductwork. Cracks, distortion or broken mounting tabs can reduce cooling efficiency or cause fan noise.
| Model | Variant |
|---|---|
| Land Rover Discovery 4 (2010-2016) | 5.0L OHC SGDI NA V8 Petrol (AJ133) (From VIN AA000001) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Inspect the shroud during any cooling-system investigation and replace it if it is cracked, distorted or has broken mounting tabs, as these faults can impair airflow and cooling. If unsure, consult the vehicle workshop manual or a qualified technician for guidance.
