LR017030 | Heater Matrix Assembly - Discovery 3, Range Rover Sport
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page
To check the stock of Genuine Parts before placing an order please use our Contact Us page
Land Rover Part Number: LR017030 - Heater Matrix Assembly

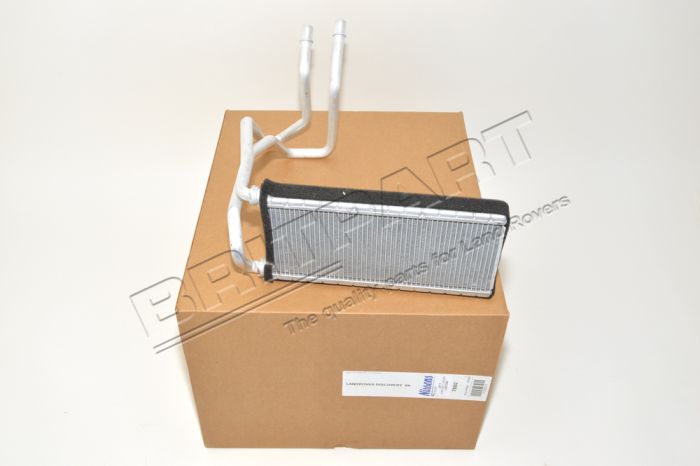

LR017030 is a Heater Matrix Assembly. Fitted into the front heater and air conditioning housing, it transfers heat from engine coolant into the cabin airflow: warm coolant passes through the matrix's small-bore tubes while vehicle air flows across the tube-and-fin core. The complete LR017030 assembly includes inlet and outlet coolant pipes for direct connection to the vehicle circuit, simplifying replacement when the entire heater core and pipework are changed together. Failure of the heater matrix can allow coolant to enter the HVAC airflow or cause loss of cabin heat, so replacement restores correct coolant containment and heat transfer performance. Designed for Discovery 3 and Range Rover Sport L320 models fitted with air conditioning, the assembly fits into the front HVAC housing on the vehicles specified below.
Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Discovery 3 (2005-2009) - From VIN 9A503176 (with air conditioning)
- Range Rover Sport L320 (2005-2009) - From VIN 9A200661 to VIN 9A999999 (with air conditioning)
Frequently Asked Questions
The LR017030 heater matrix transfers heat from the engine coolant into the cabin by routing warm coolant through a tube-and-fin core while cabin air passes over it. The complete assembly includes inlet and outlet pipes for connection to the vehicle coolant circuit, so replacement commonly involves changing the heater core and associated pipework together. Common failure signs are loss of cabin heat or coolant entering the HVAC airflow.
| Model | Variant |
|---|---|
| Land Rover Discovery 3 | 2005 - 2009 - From VIN 9A503176 (with air conditioning) |
| Land Rover Range Rover Sport L320 | 2005 - 2009 - From VIN 9A200661 to VIN 9A999999 (with air conditioning) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Replace the heater matrix if it is leaking (allowing coolant into the passenger compartment or HVAC airflow) or if it no longer provides adequate cabin heat. Inspect the heater matrix whenever the front HVAC housing is opened or during HVAC servicing.
