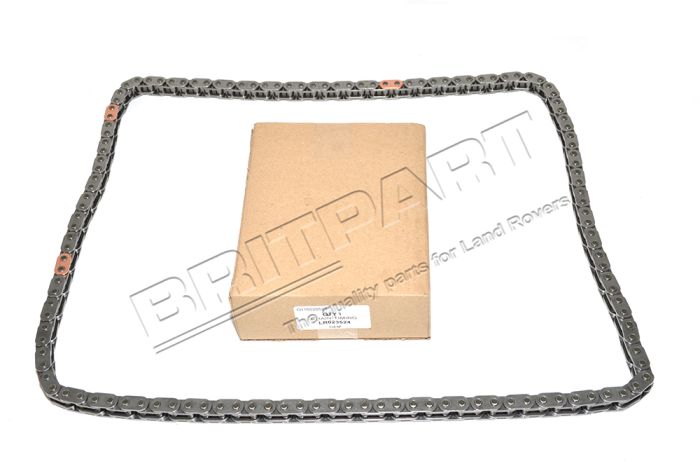

Land Rover Part Number: LR023524 - Timing Chain
LR023524 is a Timing Chain fitted to the timing gear of the 2.2L 16V Puma diesel. This chain links the crankshaft to the camshaft drive to synchronise crankshaft and camshafts and establish the mechanical timing that governs valve opening and closing; correct valve timing is required for combustion events to align with piston position. Regular inspection for wear, elongation or damaged links is important, and when the chain is renewed it is installed alongside the timing tensioning and guide components to restore correct camshaft phasing. This part is used on Defender models fitted with the 2.2L Puma diesel where timing chain replacement is required as part of engine maintenance or repair.
Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Defender (2007-2016) - 2.2L 16V Puma diesel 122PS - From VIN CA000001
Frequently Asked Questions
LR023524 links the crankshaft to the camshaft drive on the 2.2L 16V Puma diesel and establishes the mechanical timing that governs valve opening and closing. Correct valve timing is required for combustion events to align with piston position, and the chain transmits rotational motion across the timing gear train. Wear, elongation or damaged links can alter timing and cause engine running issues; replacement is carried out with the associated tensioners and guide components to restore correct camshaft phasing.
| Model | Variant |
|---|---|
| Land Rover Defender (2007-2016) | 2.2L 16V Puma diesel 122PS - From VIN CA000001 |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Inspect the timing chain at routine engine services and replace it if wear, elongation or damaged links are found or if timing-related engine symptoms develop. Replacement is normally performed alongside the timing tensioners and guide components; consult the vehicle workshop manual or a qualified technician for specific service advice.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
- Z8 products are normally supplied by Allmakes.
All products and accessories available on LRDirect.com come with a 2-year warranty.
