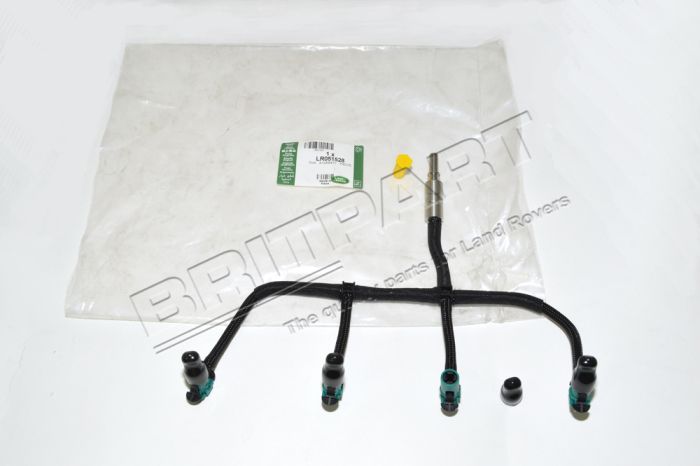

Land Rover Part Number: LR051528 - Injector Return Pipe Assembly
LR051528 is an injector return pipe assembly that routes injector leak-off fuel into the vehicle fuel return system on 2.2 CR DI (DW12) diesel engines. The pipe collects fuel that leaks past the injector seals and consolidates the individual injector leak-off lines so returned fuel can be routed away from the injectors and back to the tank or return rail. Correct seating of the pipe connectors at each injector return port and secure mounting to the engine are required to avoid vibration or contact with hot components; minor damage, cracks or loose fittings can cause a fuel odour or external leakage and should be inspected when injector work is carried out.
Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Discovery Sport (2015 onwards) - 2.2L CR DI (From VIN CH283941)
- Freelander 2 (2006-2014) - 2.2L CR DI (From VIN CH283941)
- Range Rover Evoque (2012-2018) - 2.2L CR DI (From VIN CH639806)
Frequently Asked Questions
LR051528 is an injector return pipe assembly that collects leak-off fuel from each injector and routes it into the vehicle return circuit on 2.2 CR DI (DW12) engines. It consolidates individual leak-off lines and must be correctly seated and secured to prevent external leaks or fuel odour; inspect the pipe when performing injector servicing.
| Model | Variant |
|---|---|
| Land Rover Discovery Sport | 2015 onwards - 2.2L CR DI (From VIN CH283941) |
| Land Rover Freelander 2 | 2006-2014 - 2.2L CR DI (DW12) - L359 (From VIN CH283941) |
| Land Rover Range Rover Evoque | 2012-2018 - 2.2L CR DI (DW12) - L538 (From VIN CH639806) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Inspect LR051528 whenever injector work is carried out and replace it if there are any cracks, visible damage or persistent leaks; ensure all connectors are correctly seated and the pipe is securely mounted to prevent vibration and contact with hot components.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
All products and accessories available on LRDirect.com come with a 2-year warranty.
