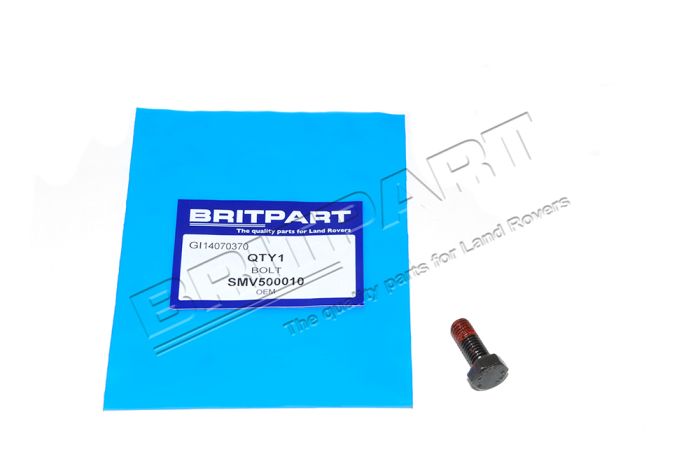

Land Rover Part Number: SMV500010 - Guide Pin Bolt - Brake Caliper
SMV500010 is a guide pin bolt for the brake caliper. It secures the caliper guide pin within the caliper assembly, retaining the sliding pin so the caliper can move freely and the brake pads can wear evenly. Fitment applies to the front and/or rear calipers on the Land Rover models listed below; inspect the bolt when servicing calipers or replacing pads.
Compatibility
- Defender L663 - Front calipers
- Discovery 3 (2005-2009) - Front & Rear calipers
- Discovery 4 (2010-2016) - Front & Rear calipers
- Discovery 5 (2017 onwards) - Front calipers
- Range Rover (L322) 2002-2009 - Front & Rear calipers
- Range Rover (L322) 2010-2012 - Front & Rear calipers
- Range Rover (L405) 2013-2022 - Front calipers
- Range Rover Sport (L320) 2005-2009 - Front & Rear calipers
- Range Rover Sport (L320) 2010-2013 - Front & Rear calipers
- Range Rover Sport (L494) 2014-2022 - Front calipers
Frequently Asked Questions
SMV500010 is the guide pin bolt that secures the brake caliper guide pin inside the caliper assembly. It holds the sliding pin in place so the caliper can move correctly; check the bolt when removing the caliper for pad or disc service and replace if damaged or heavily corroded.
| Model | Variant |
|---|---|
| Land Rover Defender (L663) | Front calipers |
| Land Rover Discovery 3 (L319) (2005-2009) | Front & Rear Brake Discs and Calipers |
| Land Rover Discovery 4 (L319) (2010-2016) | Front & Rear Brake Discs and Calipers |
| Land Rover Discovery 5 (L462) (2017 onwards) | Front Brake Discs and Calipers |
| Land Rover Range Rover (L322) (2002-2009) | Front & Rear Brake Discs and Calipers |
| Land Rover Range Rover (L322) (2010-2012) | Front & Rear Brake Discs and Calipers |
| Land Rover Range Rover (L405) (2013-2022) | Front Brake Discs and Calipers |
| Land Rover Range Rover Sport (L320) (2005-2009) | Front & Rear Brake Discs and Calipers |
| Land Rover Range Rover Sport (L320) (2010-2013) | Front & Rear Brake Discs and Calipers |
| Land Rover Range Rover Sport (L494) (2014-2022) | Front Brake Discs and Calipers |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
When removing the caliper for service, inspect the guide pin bolt for damaged threads, severe corrosion or distortion and replace if any of these conditions are present; consult a technician or the vehicle handbook if unsure.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
All products and accessories available on LRDirect.com come with a 2-year warranty.
