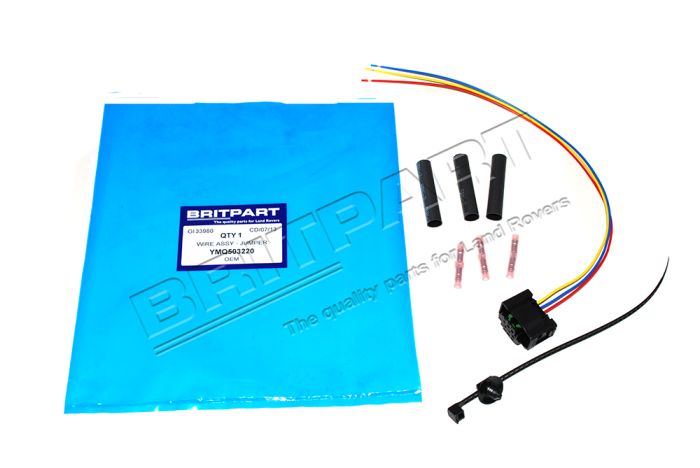

Land Rover Part Number: YMQ503220 - Height Sensor Wiring Harness
YMQ503220 is a Height Sensor Wiring Harness. Fitted between the suspension height sensor and the vehicle wiring loom, this harness carries the height signal into the vehicle wiring system so control modules can monitor and maintain ride height. The assembly includes a plug repair kit to permit replacement of damaged connector pins or short sections of cable, allowing repair of the sensor connection without replacing the complete sensor or loom. It is intended for use where the suspension height sensor wiring has been damaged or corroded, or where a connector requires refurbishment, and is suitable for vehicles with air or electronic suspension height control.
Use the compatibility data below to confirm fitment against your V.I.N.
Compatibility
- Discovery 3 (2005-2009) (L319) - To VIN 9A999999
- Range Rover L322 - To VIN 9A999999
- Range Rover Sport (L320) (2005-2009) - To VIN 9A999999
Frequently Asked Questions
The YMQ503220 harness routes the electrical signal from a suspension height sensor into the vehicle wiring so control modules can monitor and adjust ride height. It includes a plug repair kit to replace damaged connector pins or short sections of wiring, enabling repair without replacing the complete sensor or loom.
| Model | Variant |
|---|---|
| Land Rover Discovery 3 (2005-2009) (L319) | Electrical Wiring - Chassis (To VIN 9A999999) |
| Land Rover Range Rover (L322) | Electrical Wiring - Chassis (To VIN 9A999999) |
| Land Rover Range Rover Sport (2005-2009) (L320) | Electrical Wiring - Chassis (To VIN 9A999999) |
If you are unsure of compatibility with your vehicle, you can also confirm by checking against your V.I.N. Simply reach out to us with your V.I.N and desired part number via our Contact page or use our Finding Part Numbers page.
Replace the harness if wiring is damaged, corroded, or connector pins are broken such that accurate height sensing cannot be restored using the plug repair kit; consult a technician for diagnosis and repair recommendations.
- C8 products are usually supplied by Britpart.
- L8 products are genuine Land Rover parts.
- Z8 products are normally supplied by Allmakes.
All products and accessories available on LRDirect.com come with a 2-year warranty.
